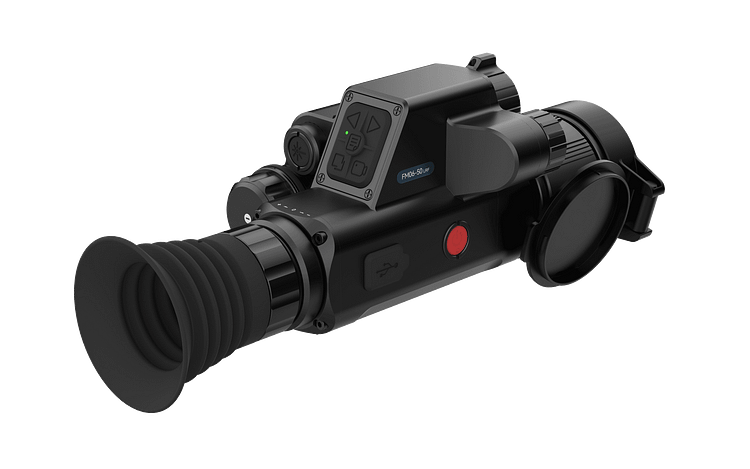

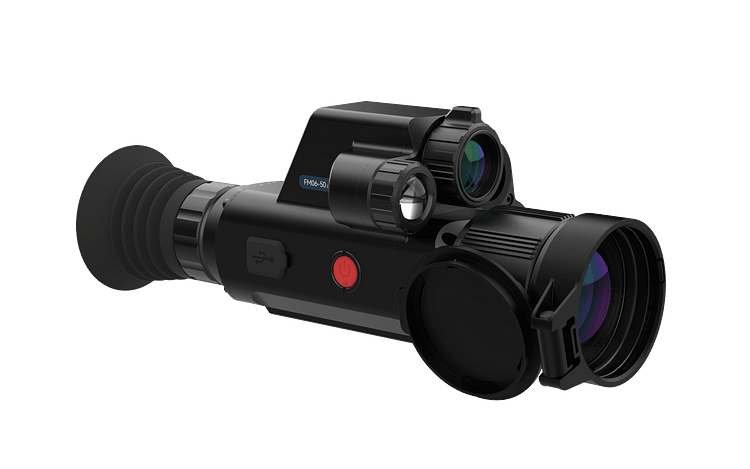

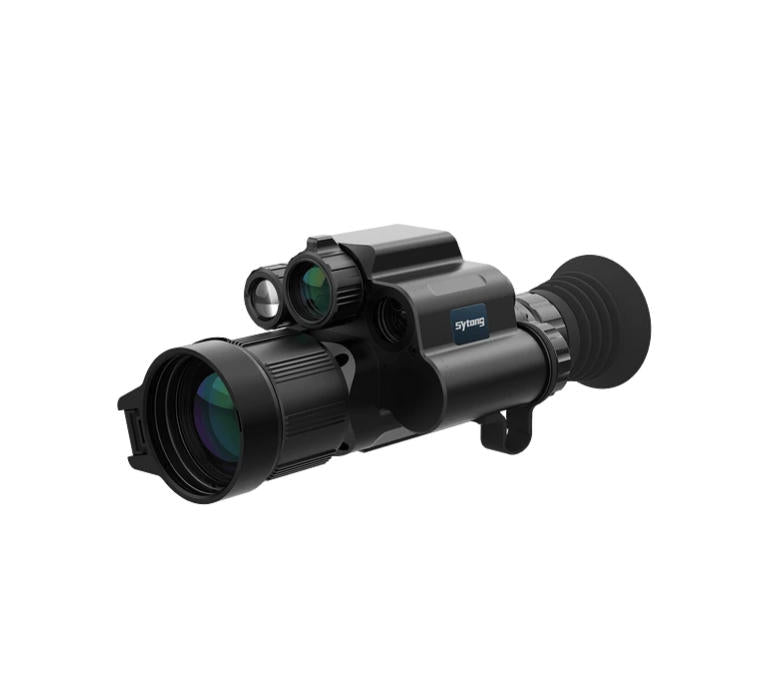

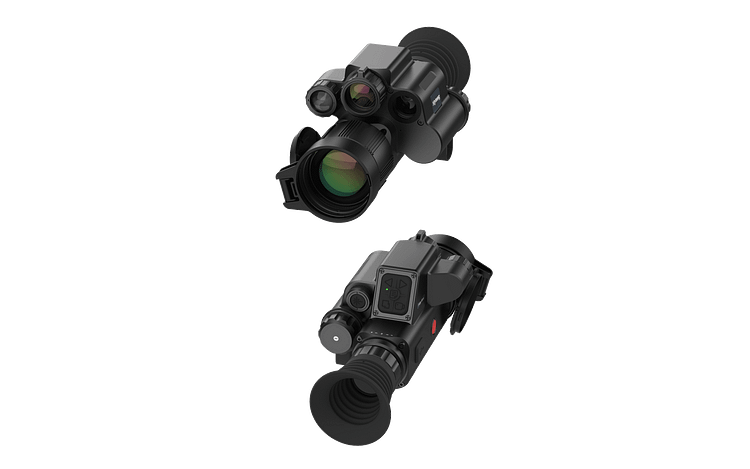

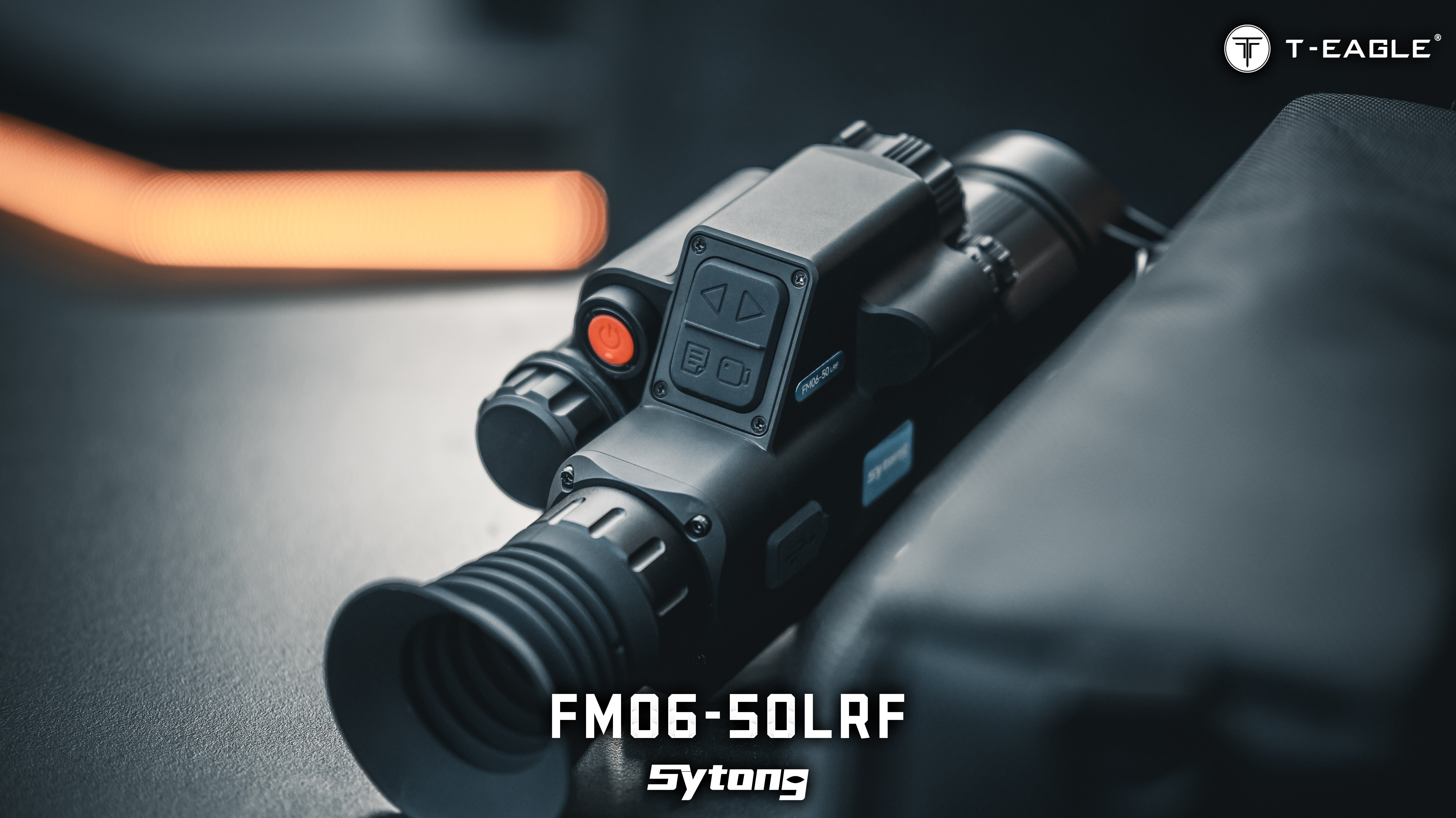

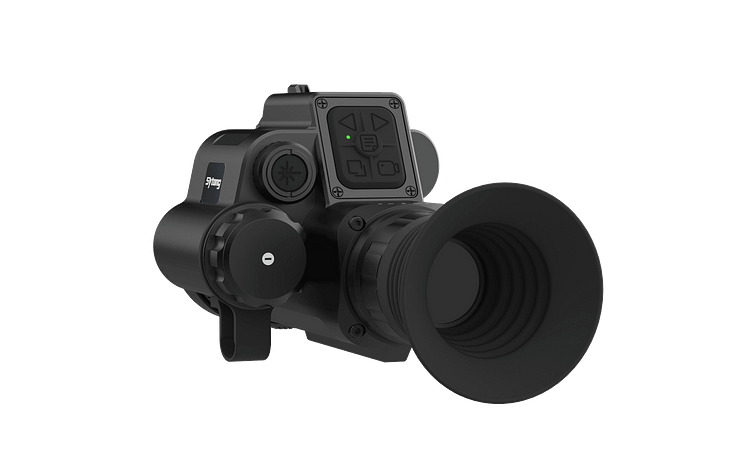

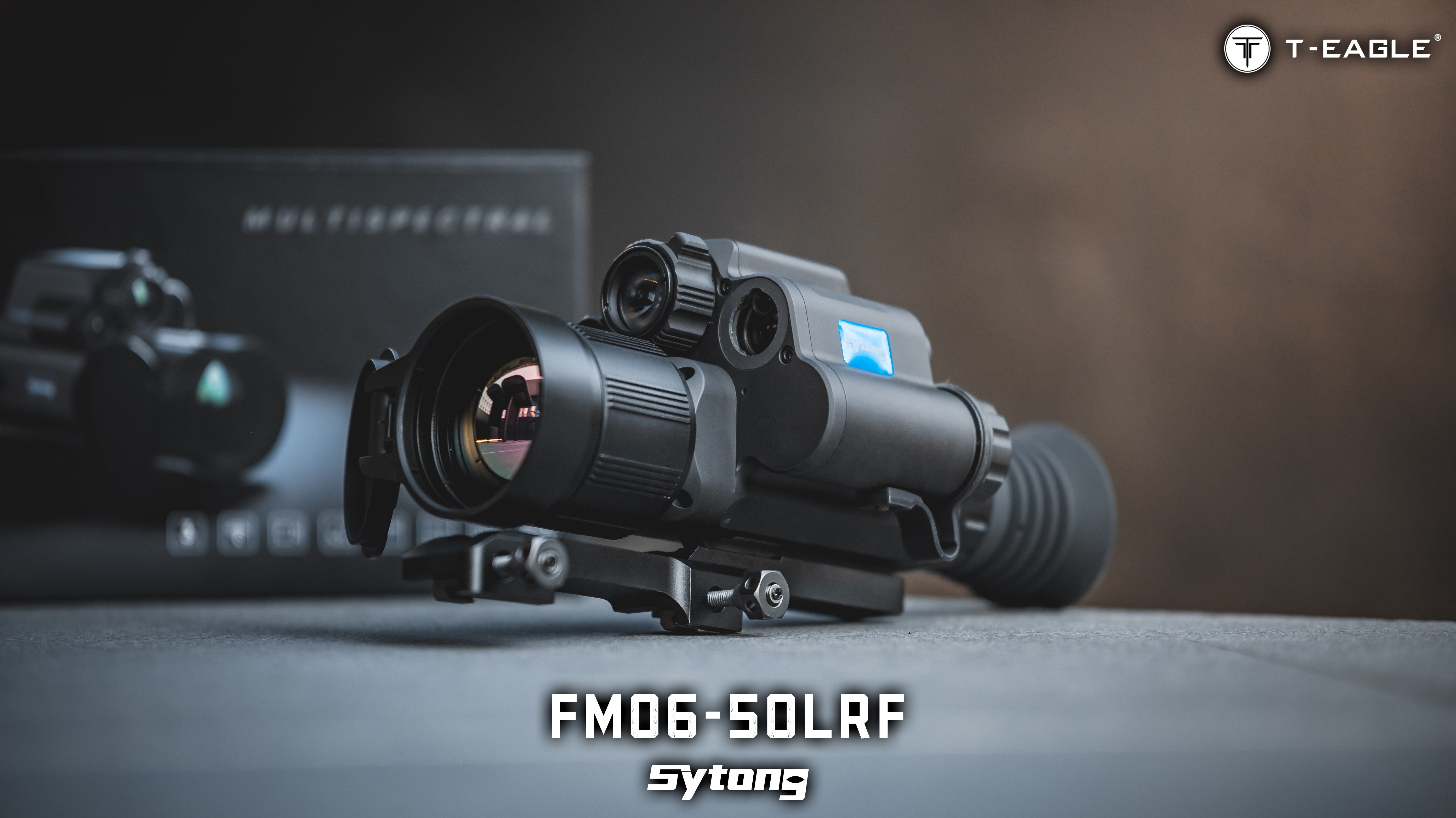

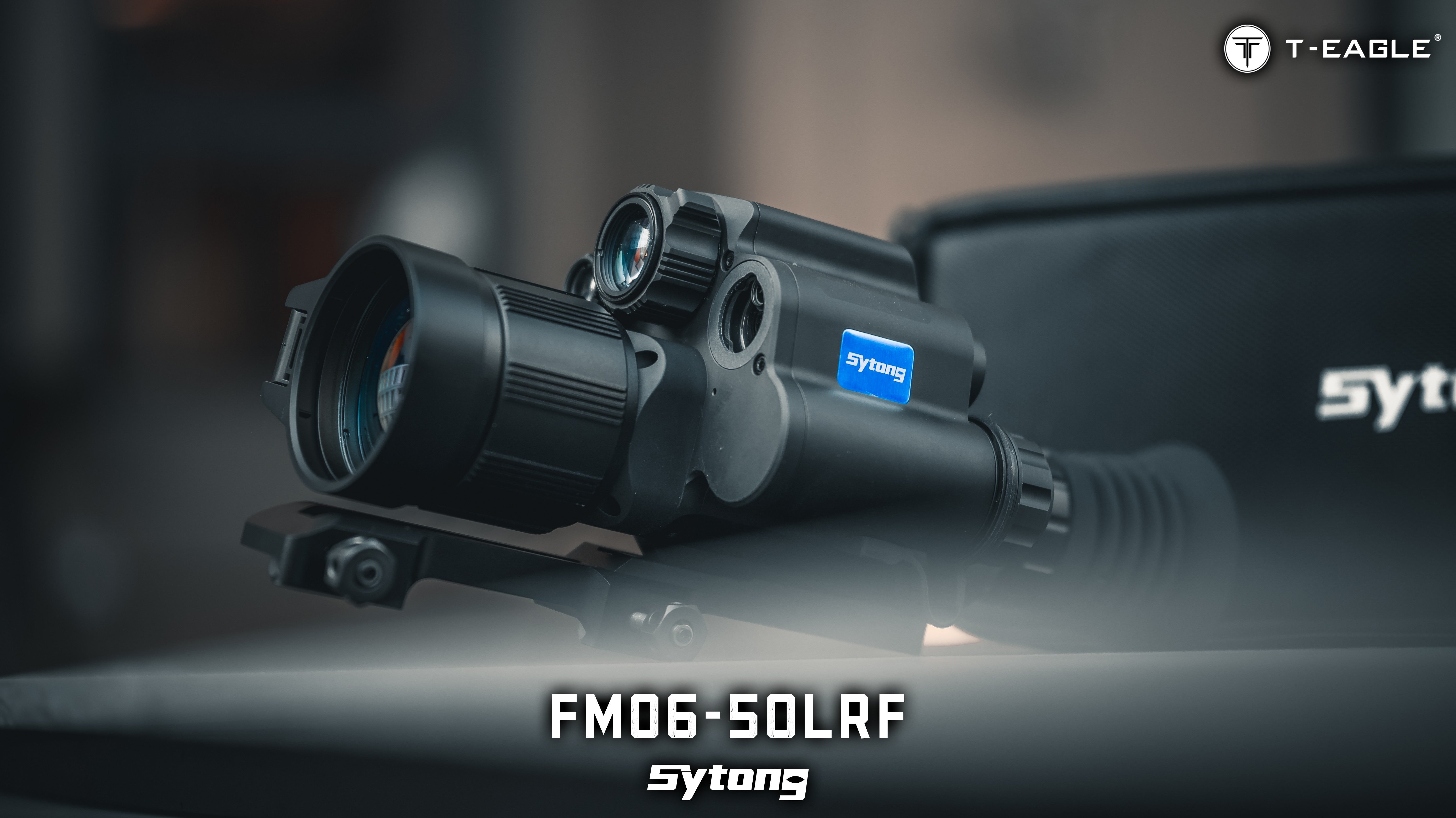

Sytong FM06-50LRF Thermal Imaging Scope With Night Vision Mode

• Dual-Spectrum Fusion Imaging: Uniquely combines a high-resolution 640x512 thermal sensor (18mK NETD) with a 1080p low-light night vision sensor, offering three operating modes: Thermal only, Night Vision only, and a real-time image Fusion mode for maximum intelligence.
• Real-Time Image Fusion: Proprietary fusion algorithm overlays critical thermal hotspots onto the detailed night vision scene, providing instant visual confirmation of living targets against complex backgrounds.
• Long-Range Precision System: Features a dual-use 50mm lens system, a 1000m laser rangefinder, and an advanced ballistic computer with 10 profile memories for accurate long-range engagements in both spectra.
• Exceptional Thermal Battery Life: Leverages the efficiency of its thermal sensor to deliver an outstanding 35 hours of continuous runtime on a single 26650 battery in thermal-only mode.
• High-Clarity AMOLED Display: A sharp 1024x768 AMOLED display presents both thermal and night vision feeds with excellent brightness and contrast, supported by customizable digital reticles.
• Professional-Grade Ruggedness: Built to MIL-SPEC standards with an IP67 rating, 1000G recoil resistance, and an operating range of -20°C to +50°C for guaranteed field reliability.
• Full-Featured Operation: Includes 32GB onboard recording (photo/video), Wi-Fi connectivity for live streaming to a phone, and a flexible power system supporting external USB-C input.

The FM06-50LRF is a flagship-grade dual-spectrum (thermal + night vision) weapon sight designed for ultimate versatility and reliability. It combines two independent imaging channels into one rugged chassis, offering operators the choice of the best sensor for the environment. With a powerful 50mm lens system, integrated LRF, and a brilliant AMOLED display, it serves as an all-in-one optical solution for military, law enforcement, and serious professional users who cannot afford to compromise on capability.

Imaging Systems

• Thermal Sensor: Uncooled Vanadium Oxide (VOx)
• Thermal Resolution: 640 x 512 (12µm)
• Thermal NETD: ≤ 18 mK
• Night Vision Sensor: High-Definition Low-Light
• Night Vision Resolution: 1920 x 1080 (2.9µm)
• Night Vision Illumination: 850 nm (Integrated)
• Frame Rate: 50 Hz (Both Channels)

Optics & Performance

• Objective Lens (Shared): 50 mm
• Aperture: F1.0 (Thermal) / F2.0 (Night Vision)
• Field of View: 8.8°×7.0° (Thermal) / 4.3°×3.2° (Night Vision)
• Detection Range: >2500 m for both channels (on 1.7m target)
• Base Magnification: ~2.8x (Thermal) / ~3x (Night Vision)
• Digital Zoom: 1x/2x/4x/8x (Thermal) / 3x/6x/9x/18x (Night Vision)
• Laser Rangefinder: Yes (1000m range, 905nm, ±1.1m accuracy)

Display & Interface

• Display: 1024 x 768 AMOLED

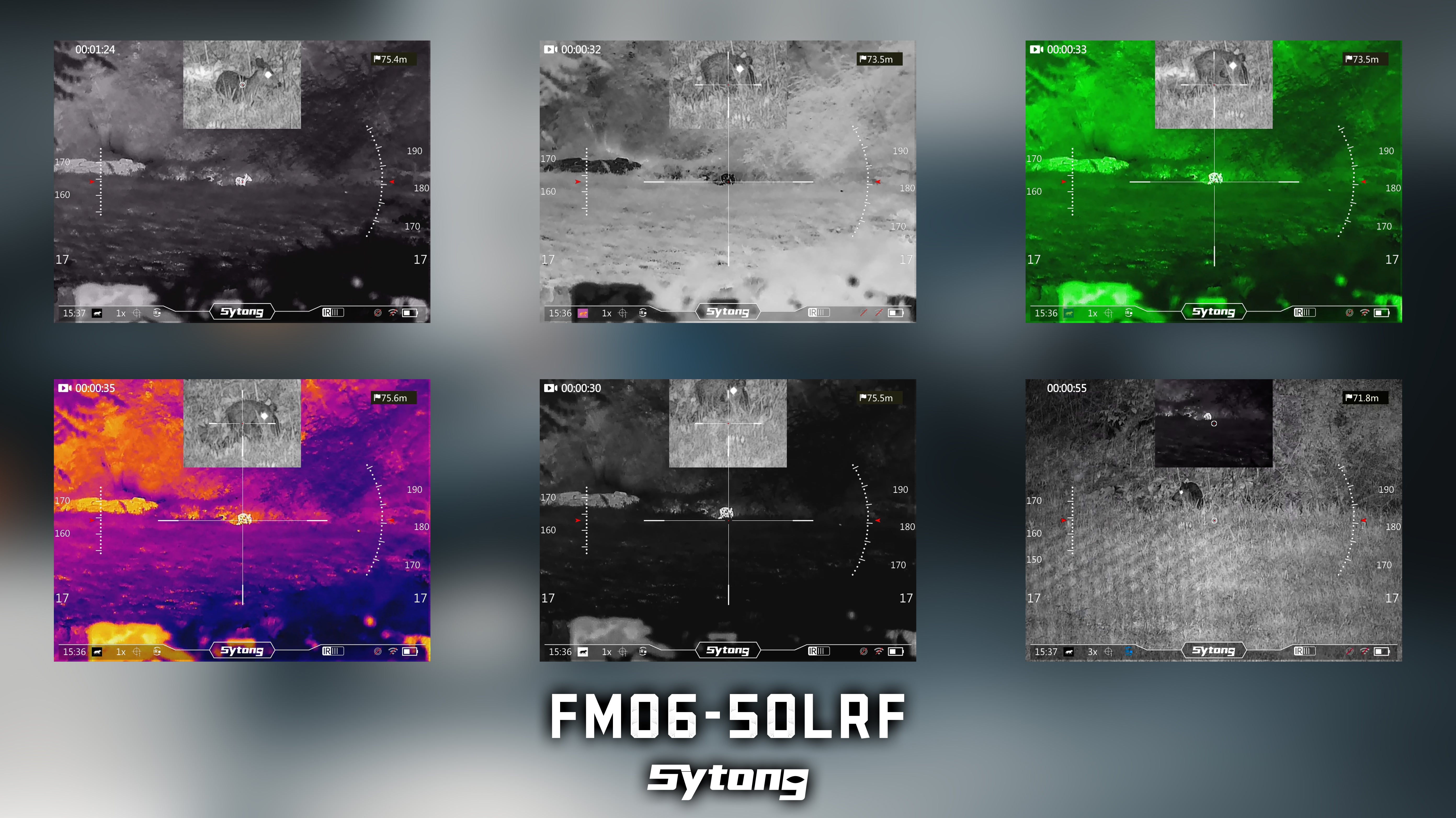

• Display Modes: White Hot, Sky, Black Hot, Red Hot, Fusion (Thermal); Color, B&W (Night Vision)
• Operating Modes: Thermal only, Night Vision only, Fusion
• Reticle System: 10 styles, 5 colors (Black/White/Gray/Red/Green)
• Ballistic Computer: Automatic calculation with 10 user profiles

Power & General

• Battery: 1 x 26650 Li-ion (5000mAh, also supports 18650)
• Battery Life: ~35 hours (Thermal mode) / >5 hours (Night Vision mode) @ 25°C
• External Power: 5V via USB Type-C
• Internal Storage: 32 GB (records .mp4 video & .jpg images)
• Connectivity: 2.4GHz Wi-Fi for smartphone app
• Mount: Picatinny Rail
• Protection Rating: IP67
• Recoil Resistance: 1000G, 6ms
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -30°C to +60°C
• Dimensions (L x W x H): 251.4 x 101.3 x 91.65 mm
• Weight: 930 g
