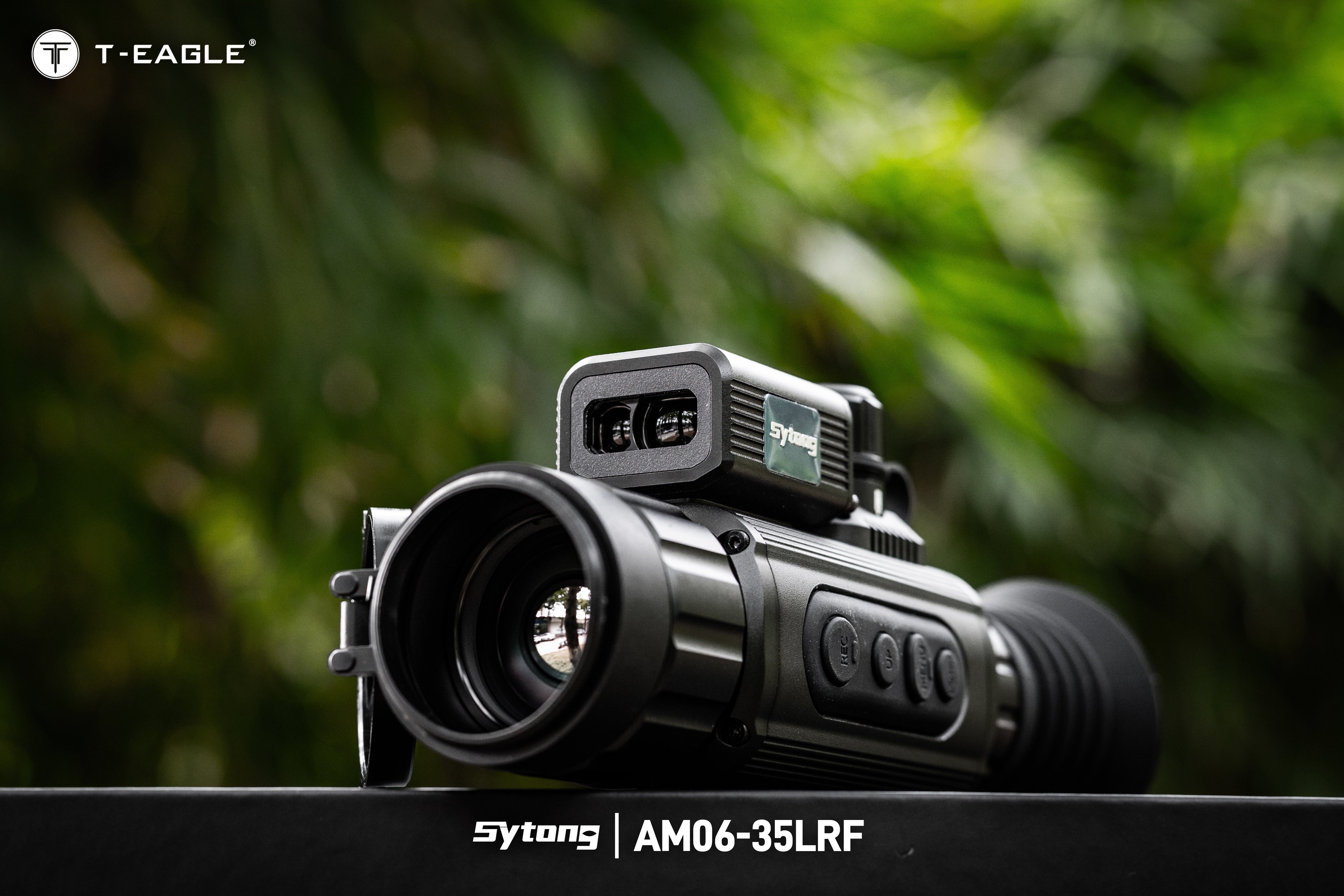

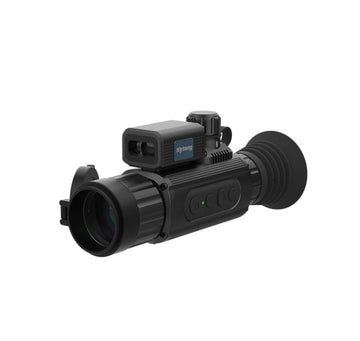

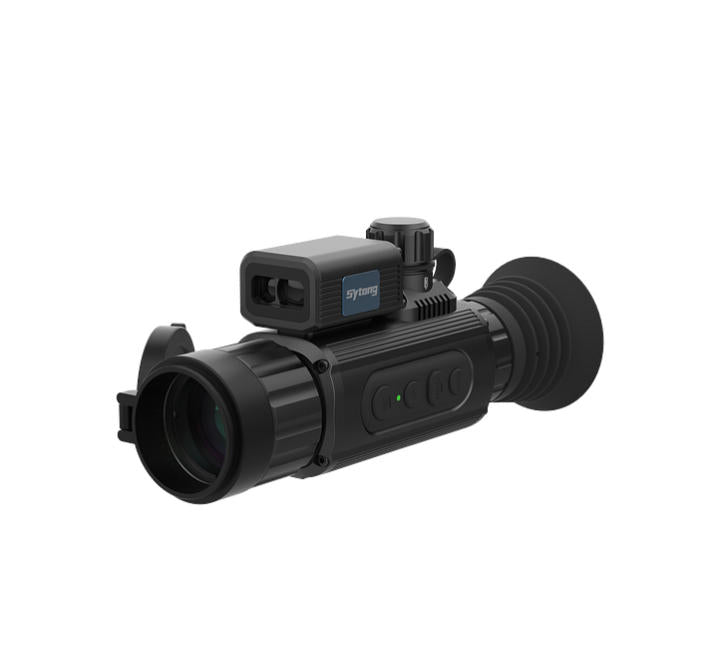

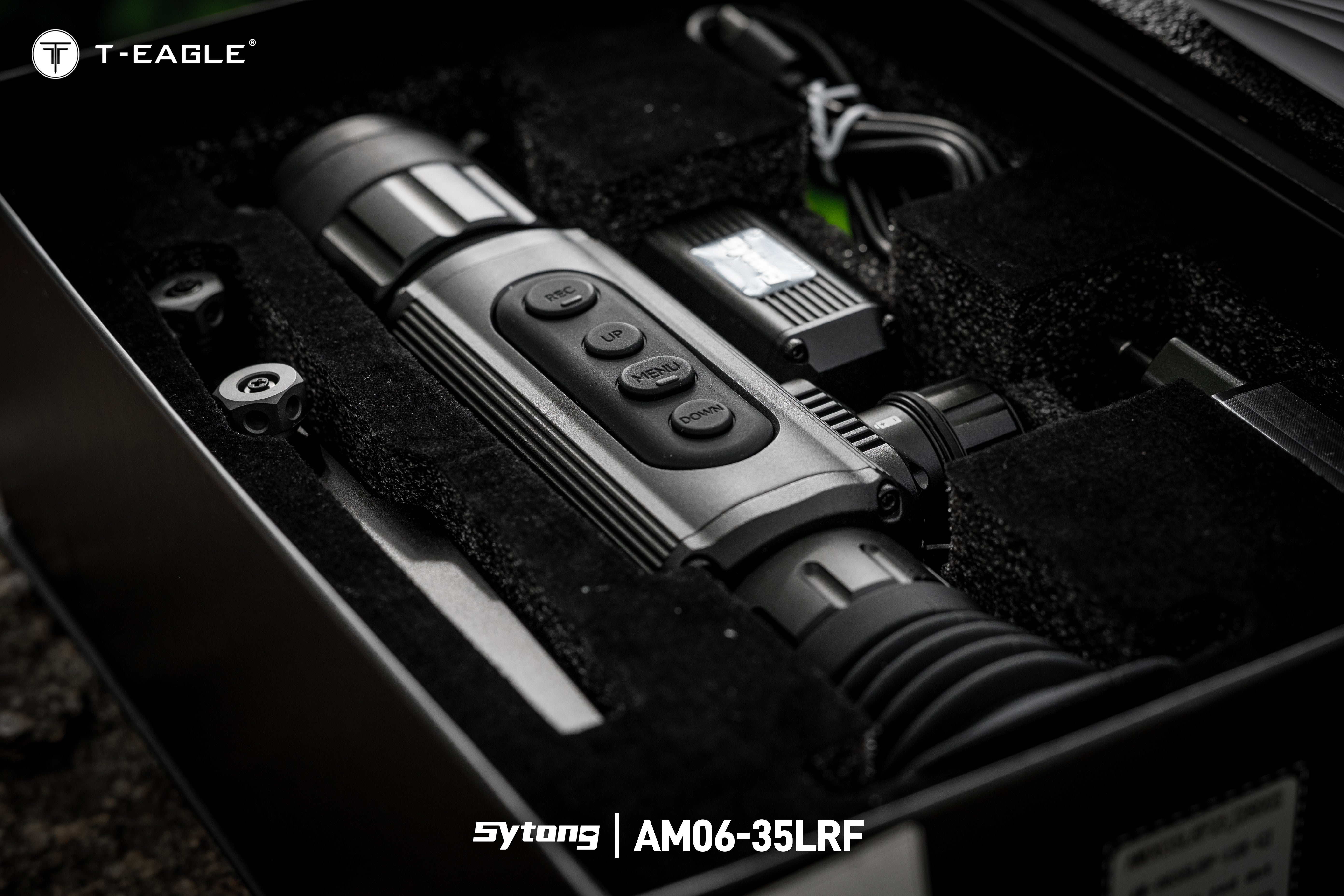

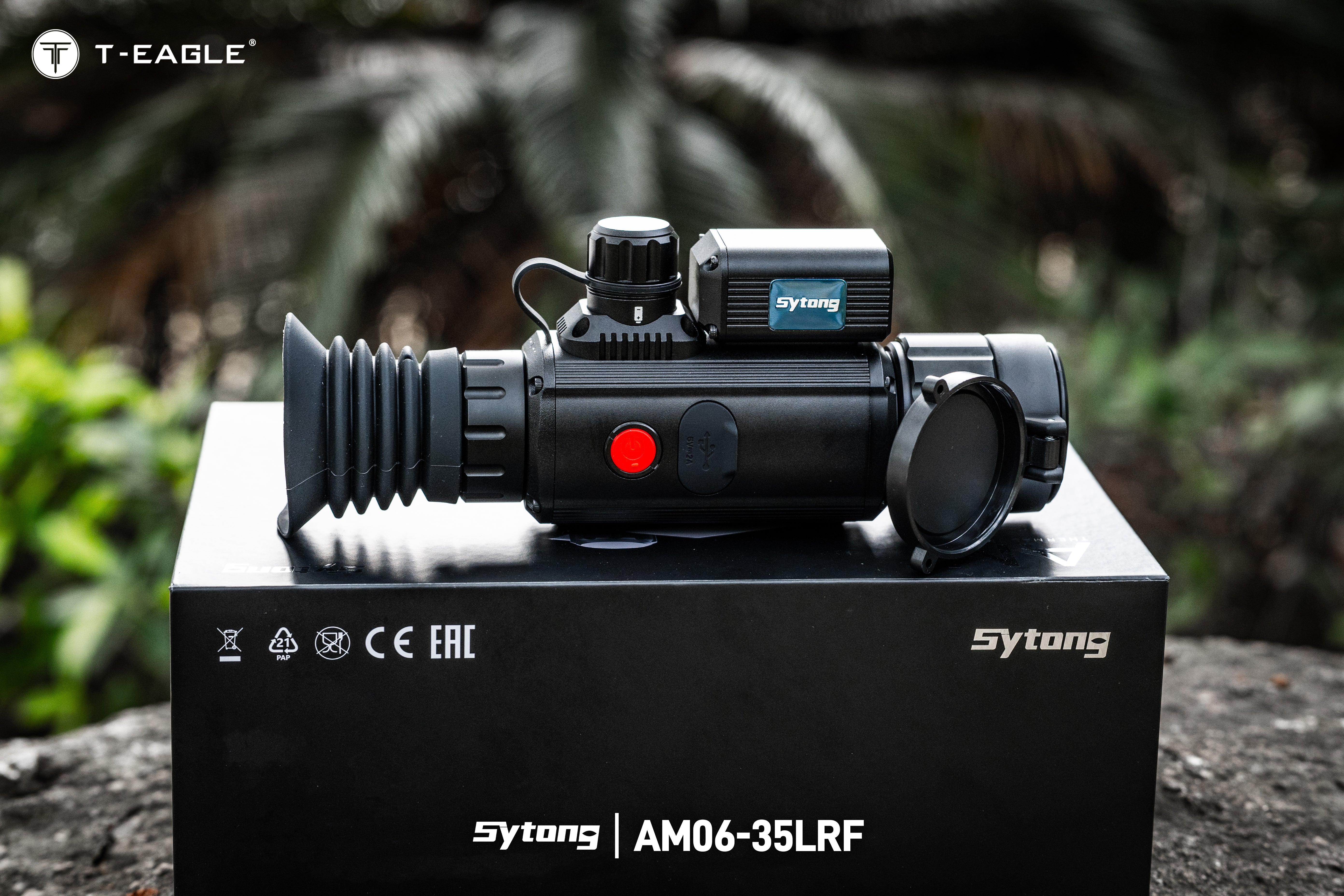

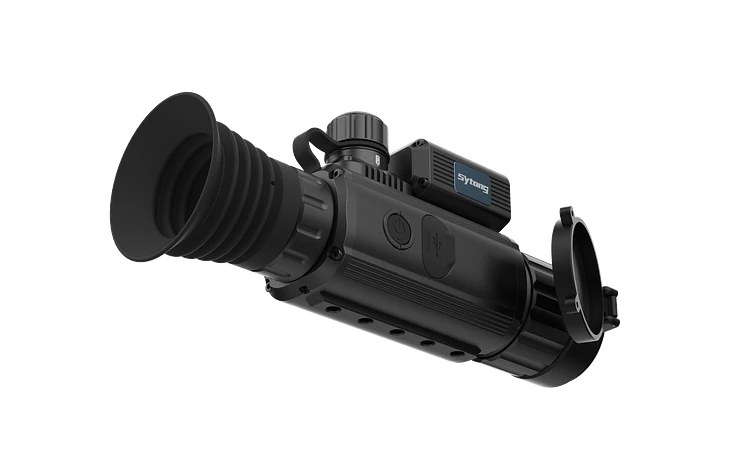

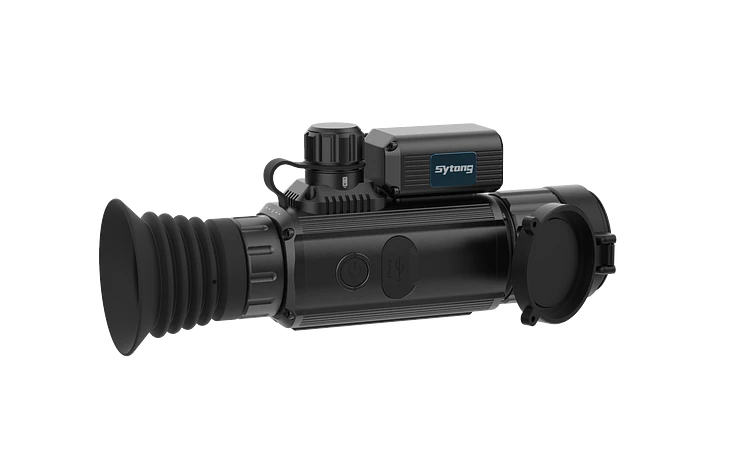

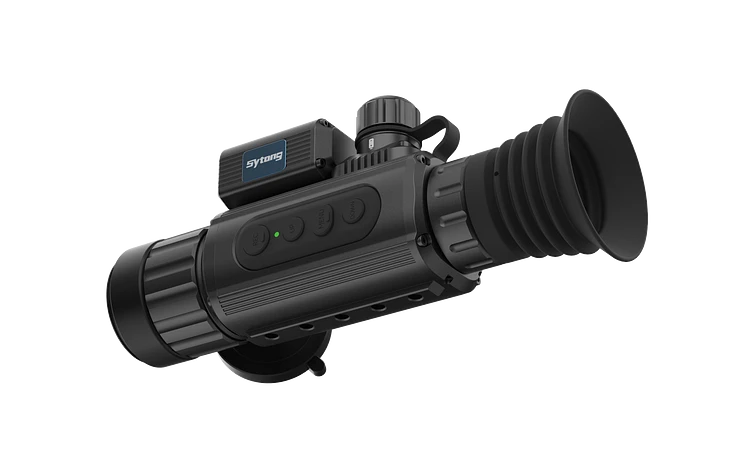

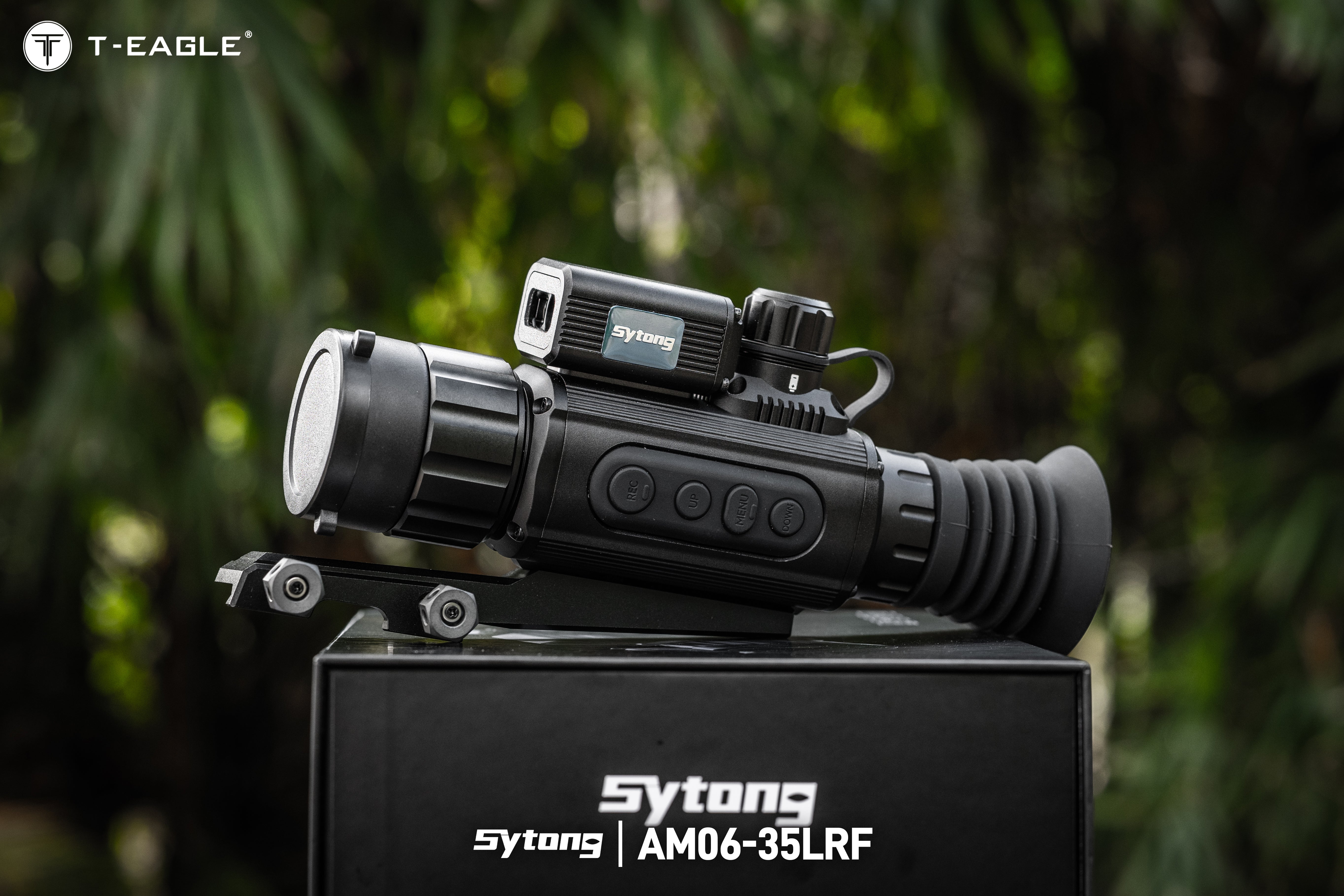

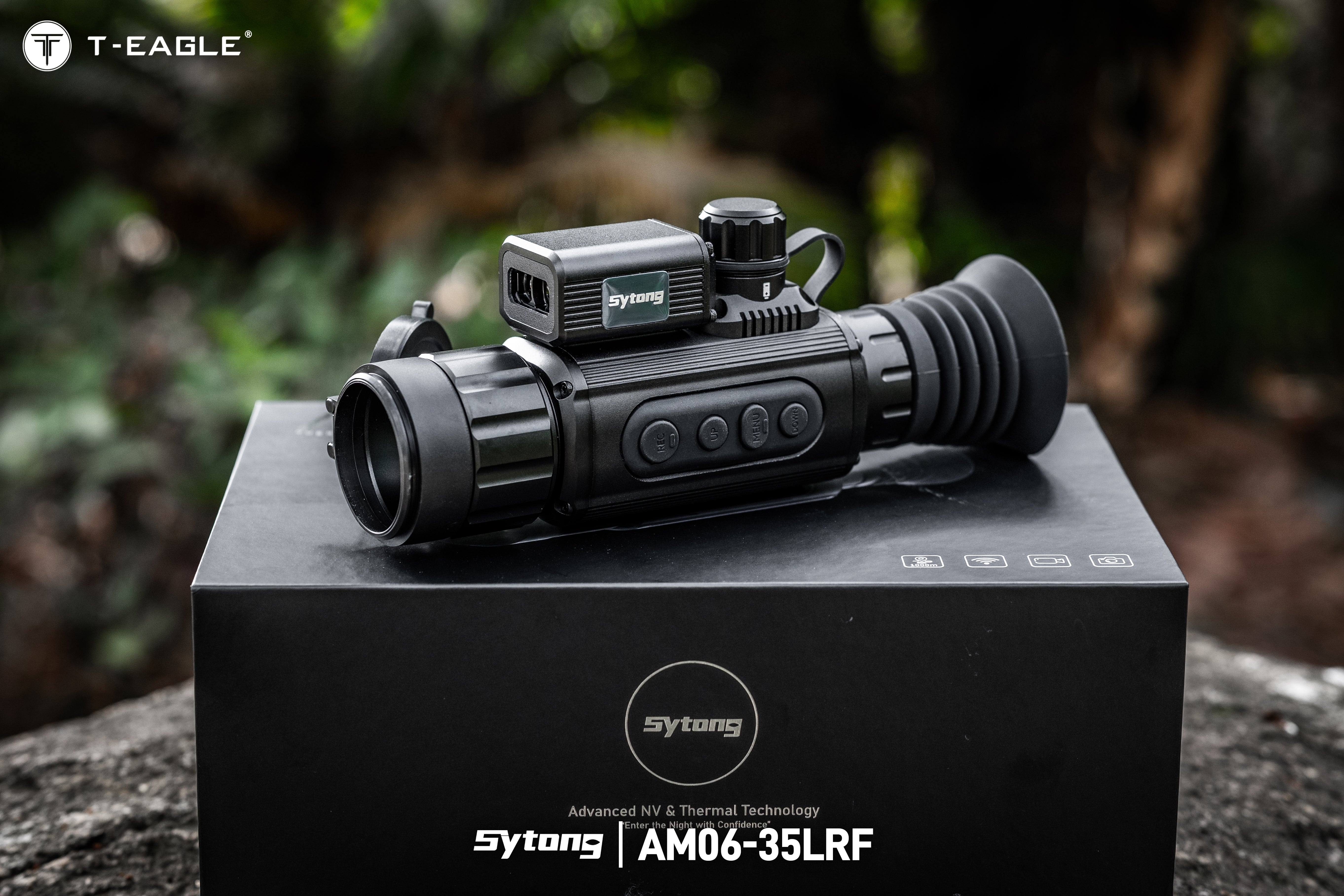

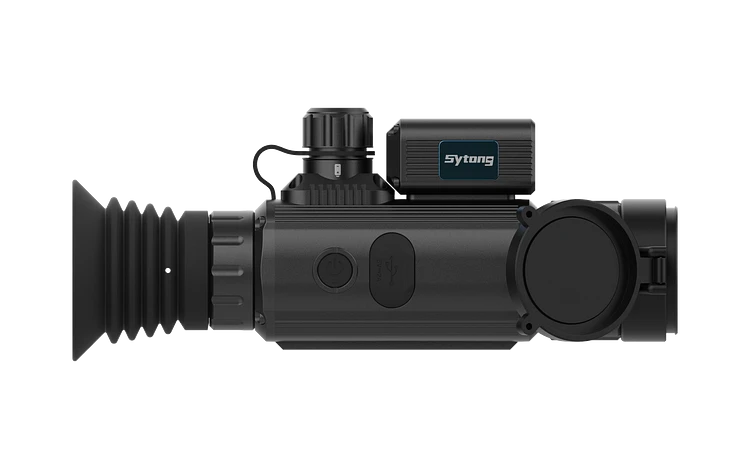

Sytong AM06-35LRF Thermal Imaging Scope With Laser Range Finder

• Wide Field of View for Fast Action: The 35mm F1.0 lens provides a wide 12.5°x10° FOV, significantly larger than standard 50mm sights, enabling faster scanning and improved tracking of moving targets.
• High-Resolution Imaging in a Lightweight Package: Delivers detailed 640x512 thermal imagery (≤18mK NETD) in a compact form factor weighing only about 610g, minimizing added weight on your firearm.
• Extreme Durability: Built to survive extreme impacts with 10,000-joule shock resistance and a full IP67 waterproof/dustproof rating for guaranteed performance in harsh conditions.
• Integrated Smart Sensor: Features a 3D gyroscope, enabling advanced capabilities like shot detection, orientation data, and enhanced usability features.
• Precision Laser Rangefinder: Includes a 905nm LRF with 1000m range (±1m accuracy) for precise distance measurement and integrated ballistic solutions.
• Complete Mission Recorder: Offers 32GB of built-in storage for high-resolution photo and video capture, plus WiFi connectivity for real-time streaming and file sharing to a smartphone.

The AM06-35LRF is a high-resolution thermal weapon sight optimized for a wide field of view and fast handling. It integrates a sensitive 640x512 core, a 35mm objective lens, and a precision laser rangefinder into a remarkably lightweight yet extremely durable chassis. Its design is ideal for close-to-mid-range engagements, scanning dense areas, and scenarios where rapid target acquisition and environmental awareness are as critical as long-range detection.

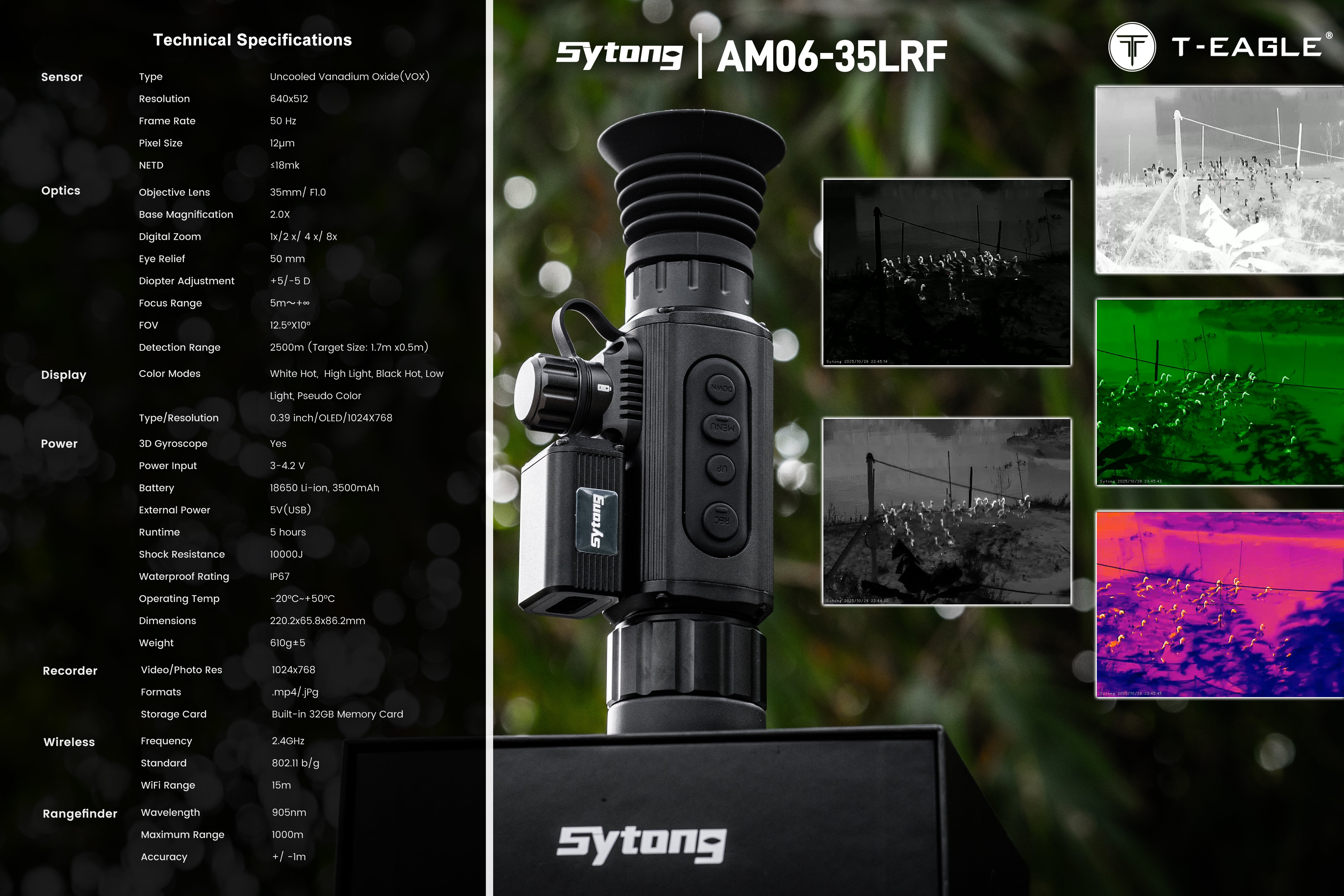

• Model: AM06-35LRF
• Detector Type: Uncooled Vanadium Oxide (VOx)
• Resolution: 640 x 512
• Pixel Pitch: 12 µm
• NETD: ≤ 18 mK
• Frame Rate: 50 Hz
• Objective Lens: 35 mm, F1.0
• Field of View: 12.5° x 10.0°
• Base Magnification: 2.0x
• Digital Zoom: 1x, 2x, 4x, 8x
• Eye Relief: 50 mm
• Diopter Adjustment: -5 to +5 D
• Focus Range: 5 m to ∞
• Detection Range: 2500 m (for 1.7m x 0.5m target)
• Display Type: 0.39-inch OLED
• Display Resolution: 1024 x 768
• Color Modes: White Hot, High Light, Black Hot, Low Light, Pseudo Color
• 3D Gyroscope: Yes
• Laser Rangefinder: Yes
• LRF Wavelength: 905 nm
• LRF Max Range: 1000 m
• LRF Accuracy: ± 1 m
• Battery: 1 x 18650 Li-ion (3500mAh)
• External Power: 5V via USB
• Operating Time: 5 hours
• Internal Storage: 32 GB (Built-in)
• Media Format: Video (.mp4), Photo (.jpg)
• WiFi: 2.4GHz (802.11 b/g), 15m range
• Shock Resistance: 10,000 J
• Protection Rating: IP67
• Operating Temperature: -20°C to +50°C
• Dimensions (L x W x H): 220.2 x 65.8 x 86.2 mm
• Weight: 610 g (±5g)
