Conotech Lipot 335LRF Thermal Monocular

• Integrated laser rangefinder – 5‑1200 m, ±1 m, Class 1.
• 384×288 Vox sensor – 12μm, <15mK NETD.
• 35mm objective lens – 3.5× base magnification, digital zoom to 14×.
• Narrow FOV – 13×9.9 m@100m for long‑range precision.
• AI focus – Automatic sharpness optimization.
• 1920×1080 OLED – High‑definition display (0.49 inch).
• 50Hz refresh rate – Smooth tracking.
• Wi‑Fi APP – Remote viewing, recording, updates.
• Single 18650 battery – 6 hours runtime.
• USB‑C – External power capable.
• IP67 waterproof – Sealed against dust and immersion.
• Compact 300g – Lightweight and easy to carry.

The Lipot 335LRF is optimized for medium‑ to long‑range target identification. The 35mm lens delivers a base magnification of 3.5×, allowing you to see finer details at distance than the 325LRF. The field of view is 13×9.9 m@100m, which is well suited for focused observation. Digital zoom extends to 14× for extreme close‑up inspection. The 384×288 sensor with <15mK NETD ensures high thermal contrast, and the 1920×1080 OLED screen presents a sharp image with distance overlay from the laser rangefinder. AI focus keeps the image crisp. Wi‑Fi connectivity allows remote control and media capture. The single 18650 battery provides 6 hours of operation, and the IP67‑rated body stands up to rain, snow, and dust.

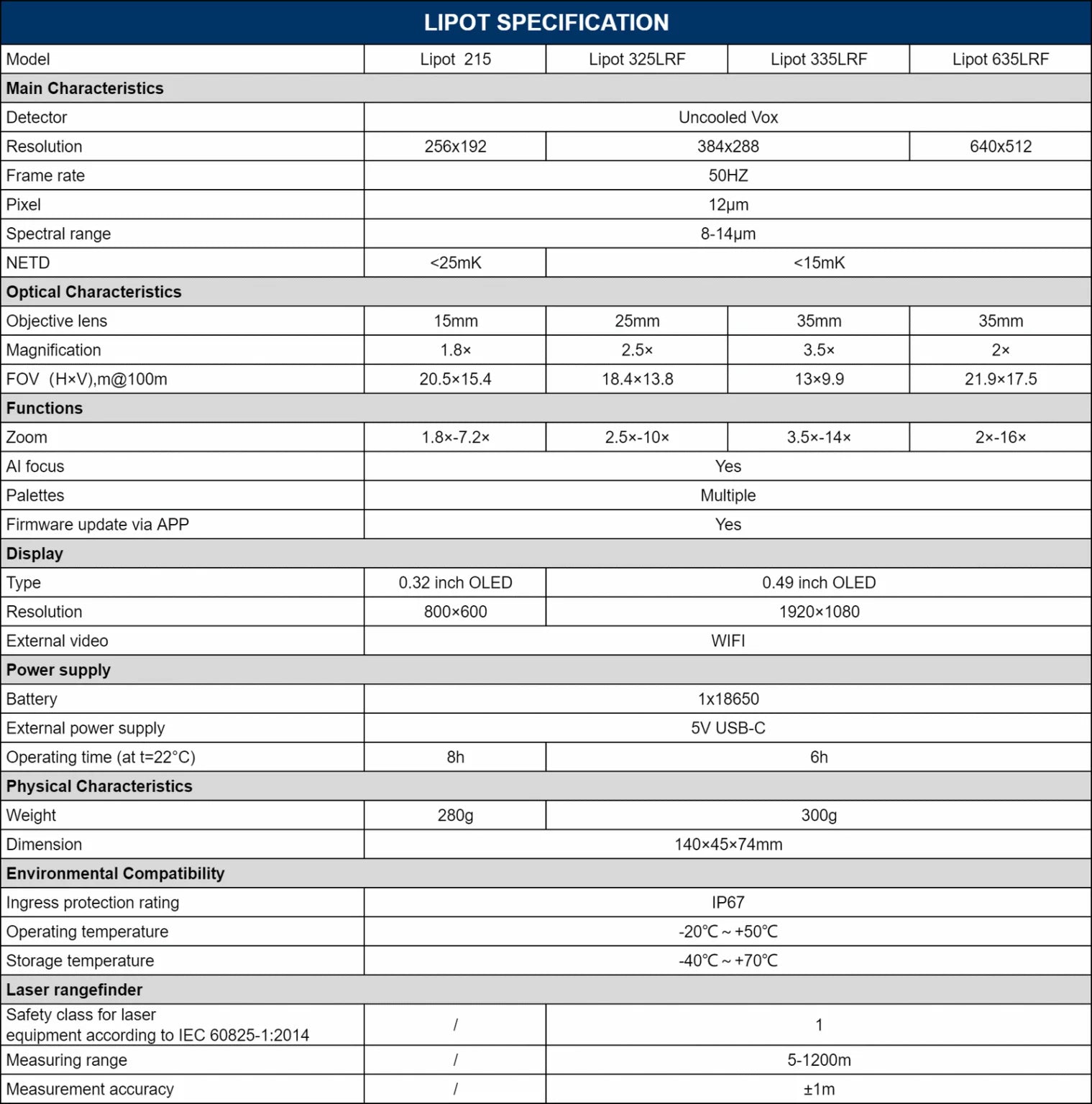

Model: Lipot 335LRF
Detector: Uncooled Vox
Resolution: 384×288
Frame rate: 50Hz
Pixel pitch: 12μm
Spectral range: 8‑14μm
NETD: <15mK
Objective lens: 35mm
Magnification: 3.5× (digital zoom 3.5×‑14×)
FOV (H×V) m@100m: 13×9.9
AI focus: Yes

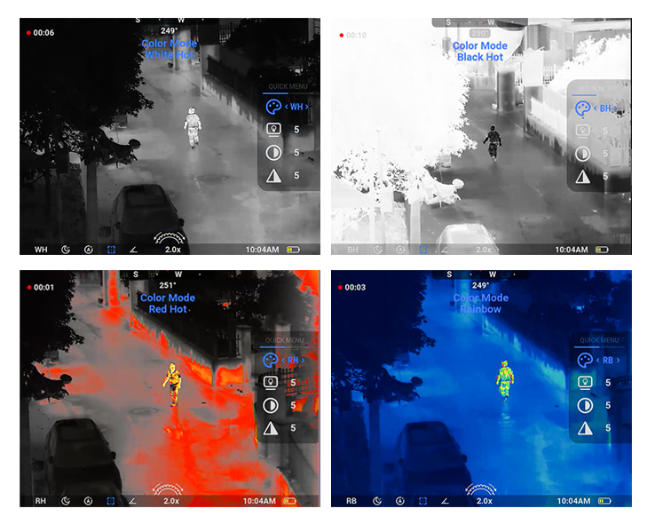

Palettes: Multiple
Firmware update via APP: Yes
Display type: 0.49 inch OLED
Display resolution: 1920×1080
External video: Wi‑Fi
Battery: 1×18650
External power supply: 5V USB‑C
Operating time (at 22°C): 6h
Weight: 300g
Dimension: 140×45×74mm
Ingress protection rating: IP67
Operating temperature: -20°C~+50°C
Storage temperature: -40°C~+70°C
Laser safety class (IEC 60825‑1:2014): Class 1
Laser measuring range: 5‑1200m
Measurement accuracy: ±1m
