NIGHT VISION PVS-14S,Gen 3, Auto-Gated , Green Phosphor, FOM 2200

• Gen 2+ image intensifier tube – Provides excellent low‑light performance with sharp, clear images.

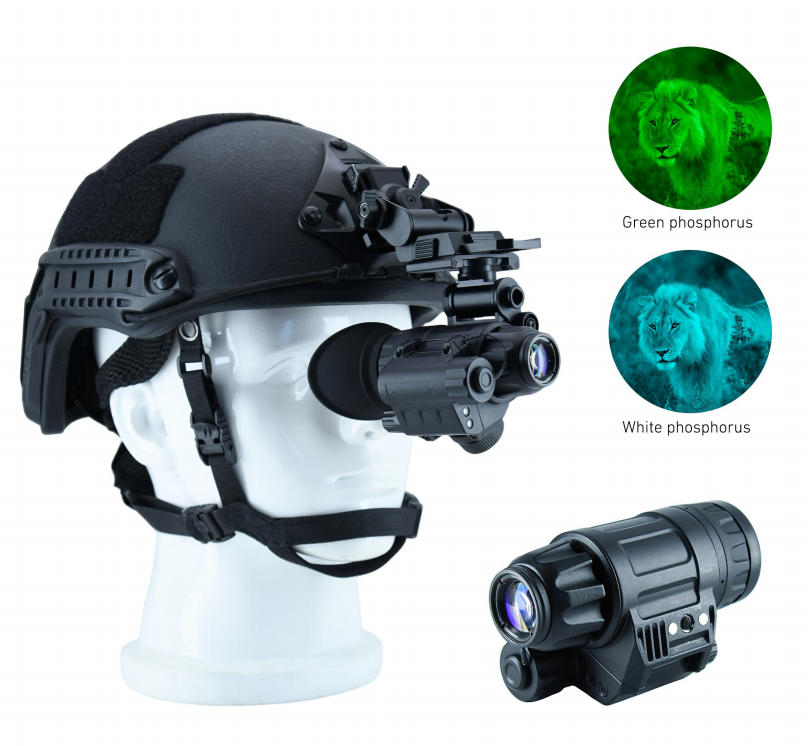

• Choice of phosphor – P43 (green) or P45 (white) for user preference.
• Wide 50° field of view – Broader than standard PVS‑14 models, ideal for situational awareness.
• 1× magnification – Natural viewing with unlimited depth of field.
• Manual brightness gain control – Allows precise adjustment of image intensity to match ambient light.
• Low optical distortion (≤2%) – Ensures true‑to‑life image reproduction.
• High relative illumination (>70%) – Uniform brightness across the entire field of view.
• Diopter adjustment (+2 to -6) – Accommodates most users without eyeglasses.
• Focus from 25 cm to infinity – Versatile for close‑up and long‑distance observation.
• Comfortable eye relief (≥25 mm) – Safe and comfortable for extended wear.
• Built‑in 930 nm infrared illuminator – Enables operation in total darkness.

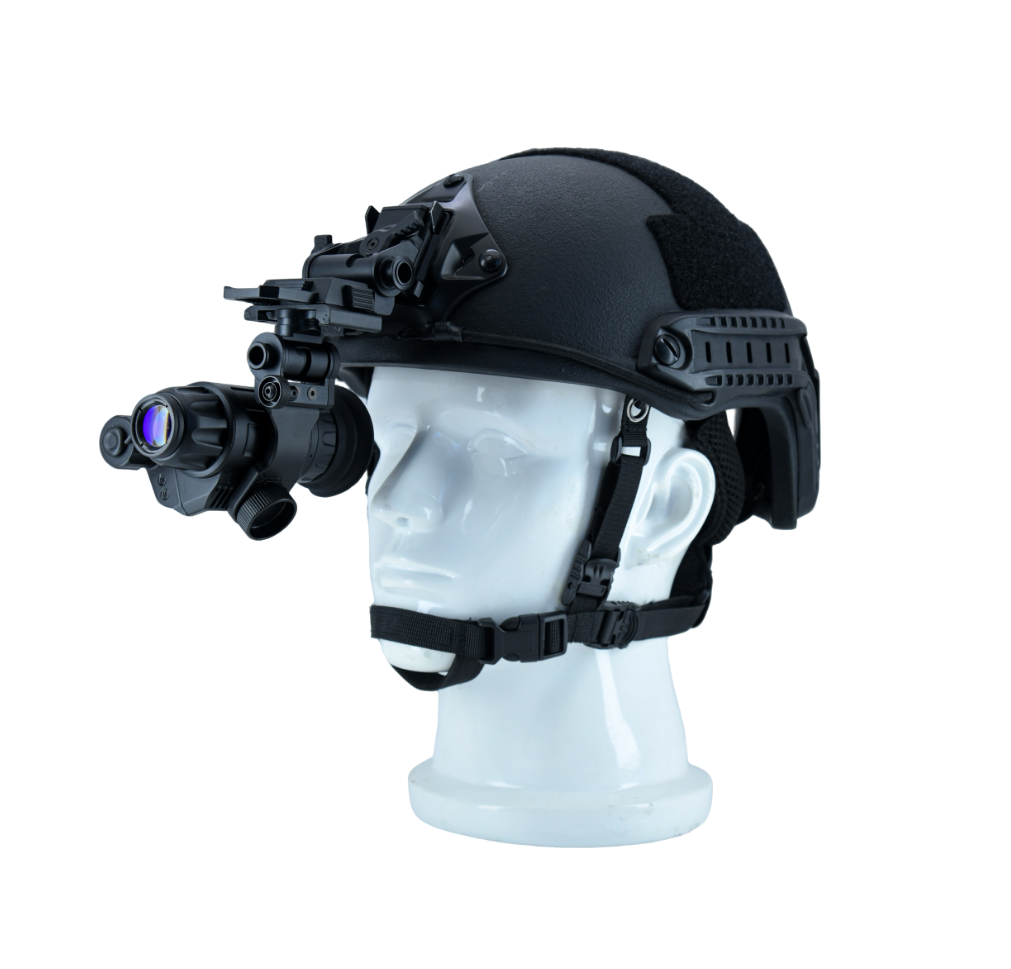

• Rollover detection – Automatically powers off when flipped up on a helmet mount.
• Bright‑source protection – Safeguards the tube from accidental exposure to strong light.
• Low‑voltage alarm – Alerts you when battery power is running low.
• Long battery life – Up to 30 hours on a single CR123A or AA battery.
• Ultra‑lightweight – Only 260 g (without battery) for comfortable handheld or head‑mounted use.
• Compact dimensions – 105×55×70 mm, easy to carry and store.
• Waterproof (IP65) – Resists rain, dust, and splashes for all‑weather reliability.
• Wide operating temperature – -20°C to +45°C for demanding environments.

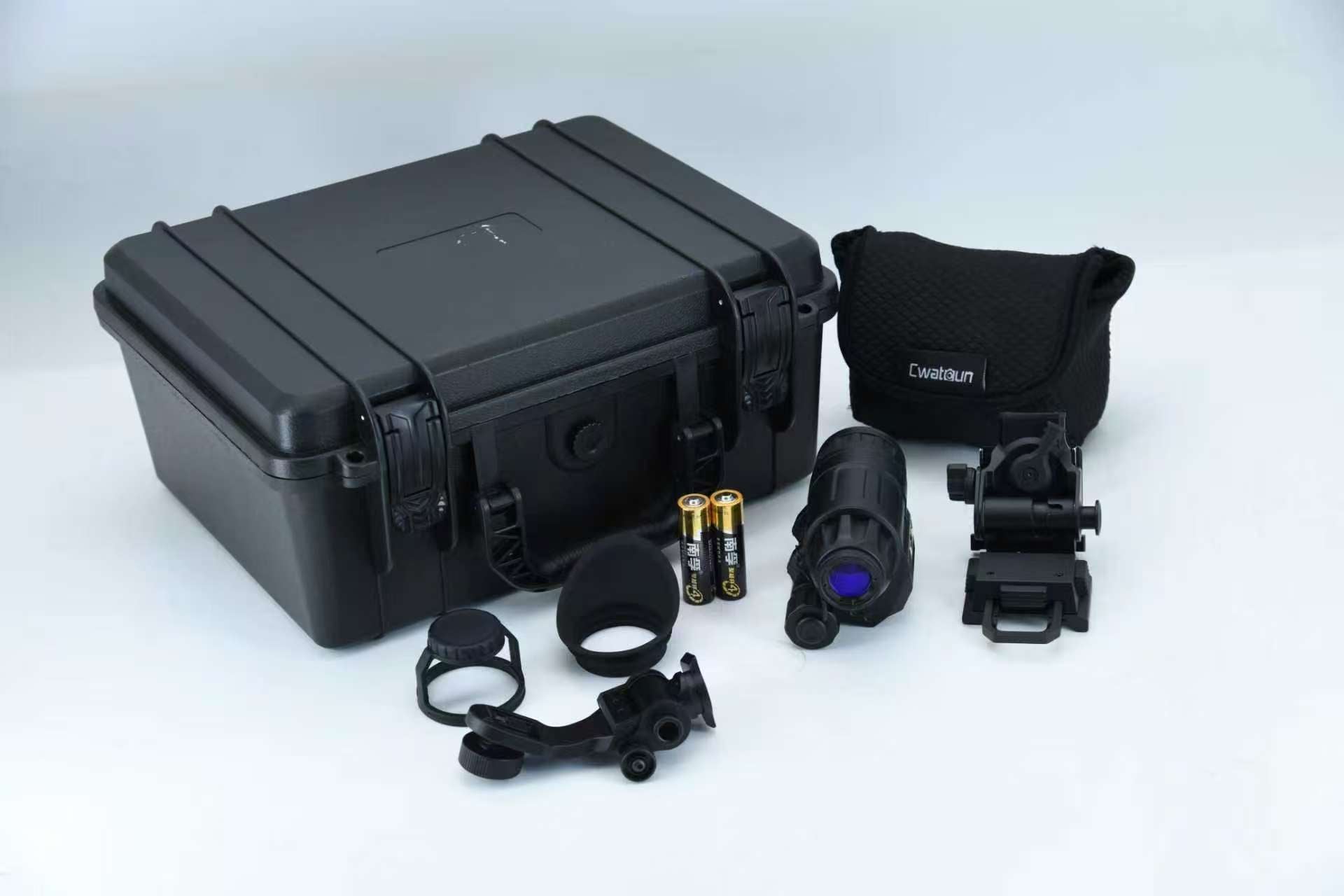

• Complete accessory package – Includes helmet bracket, J‑arm, portable bag, lens caps, and eyecups for immediate field deployment.

The PVS‑14S is an evolution of the classic PVS‑14 platform, optimized for users who prioritize a wider field of view and lighter weight. The 50°±2° field of view (compared to the standard 40°) gives you a broader perspective, making it ideal for scanning terrain, tracking moving targets, or navigating in complete darkness. The Gen 2+ tube with P43 (green) or P45 (white) phosphor offers excellent low‑light sensitivity, with manual brightness gain adjustment allowing you to fine‑tune image intensity to match ambient conditions. The optical system provides low distortion (≤2%) and high relative illumination (>70%), ensuring clear, uniform images across the entire view. The focus range from 25 cm to infinity covers both close‑up inspection and distant observation, while the diopter adjustment (+2 to -6) accommodates most users without corrective lenses. The monocular is equipped with a built‑in 930 nm infrared illuminator for total darkness operation, and safety features include low‑voltage warning and automatic bright‑source protection to safeguard the tube. The rollover detection automatically shuts off the unit when flipped up on a helmet mount, preserving battery life. Powered by a single CR123A or AA battery, the PVS‑14S runs for 30 hours. Its lightweight (260 g) and compact dimensions, combined with IP65 waterproofing, make it a reliable companion for military, law enforcement, hunting, and outdoor enthusiasts. The included helmet bracket, J‑arm, soft bag, lens caps, and eyecups provide everything you need for immediate field use.

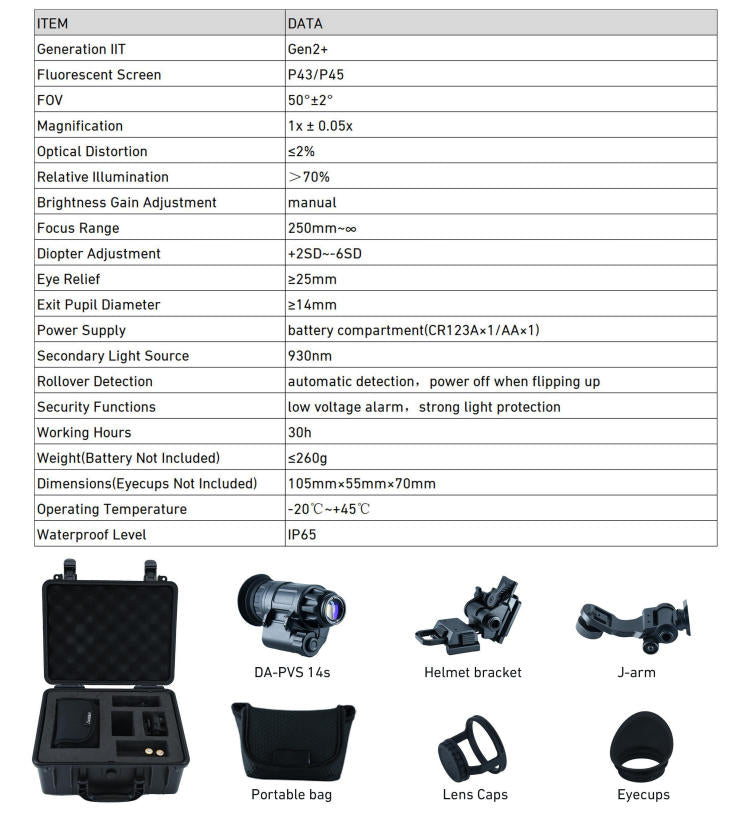

Model: PVS‑14S
Product type: Night vision monocular
Generation: Gen 2+
Fluorescent screen: P43 (green) or P45 (white)
Field of view: 50° ±2°
Magnification: 1× ±0.05×
Optical distortion: ≤2%
Relative illumination: >70%
Brightness gain adjustment: Manual
Focus range: 250 mm to infinity
Diopter adjustment: +2 D to -6 D
Eye relief: ≥25 mm
Exit pupil diameter: ≥14 mm
Power supply: Battery compartment (CR123A ×1 or AA ×1)
Secondary light source (IR illuminator): 930 nm
Rollover detection: Automatic detection, power off when flipping up
Security functions: Low‑voltage alarm, strong‑light protection
Battery life: 30 hours
Weight (without battery): ≤260 g
Dimensions (without eyecups): 105 mm × 55 mm × 70 mm
Operating temperature: -20°C to +45°C
Waterproof level: IP65
Included accessories: Helmet bracket, J‑arm, portable bag, lens caps, eyecups
